Buy Swimmax Inverboost PBS 255P Full Inverter Heat Pump

Additional Services
Options

Additional Services

Options

Swimmax Inverboost Heat Pumps by Premiere House have everything you’re looking for – or should be looking for – in a swimming pool and spa heat pump that pays for itself. Our powerful Inverboost technology gives competitors a run for their money – thanks to its robust, innovative, and reliable functionality.

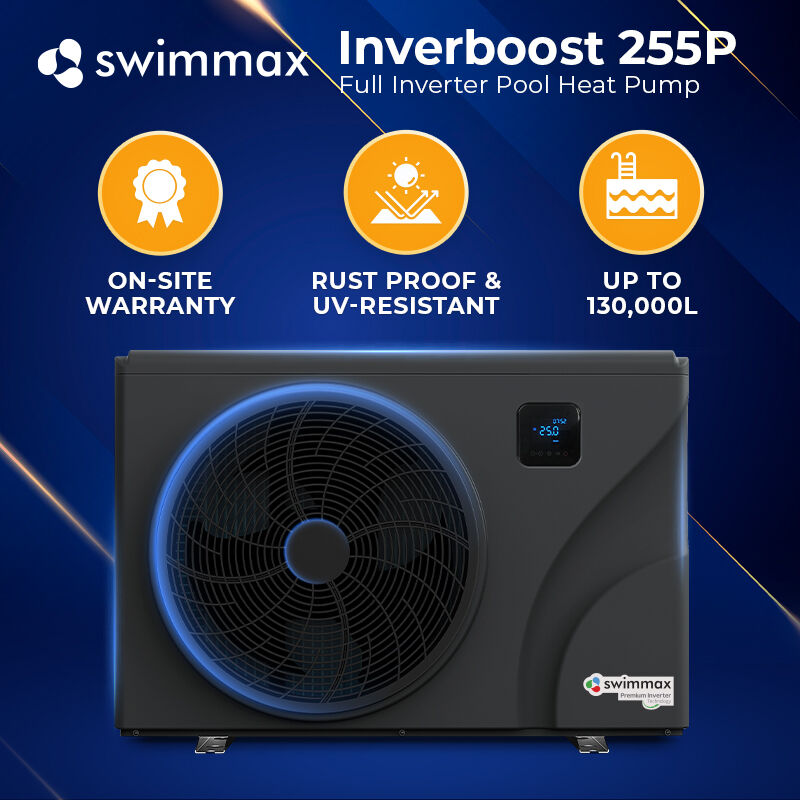

Ideal for residential and public swimming pools and spas, our heat pumps showcase an ABS No-Rust Exterior Case that is tough and sleek. This premium inverter unit is recommended for pools and spas with up to 130,000 liters capacity. It also returns at least 25 kW in heat output for only 1.77 kW of electricity input. Swimmax Inverboost Heat Pumps can run silently and economically 24/7 in the cold, quietly operating at only 42 decibels.

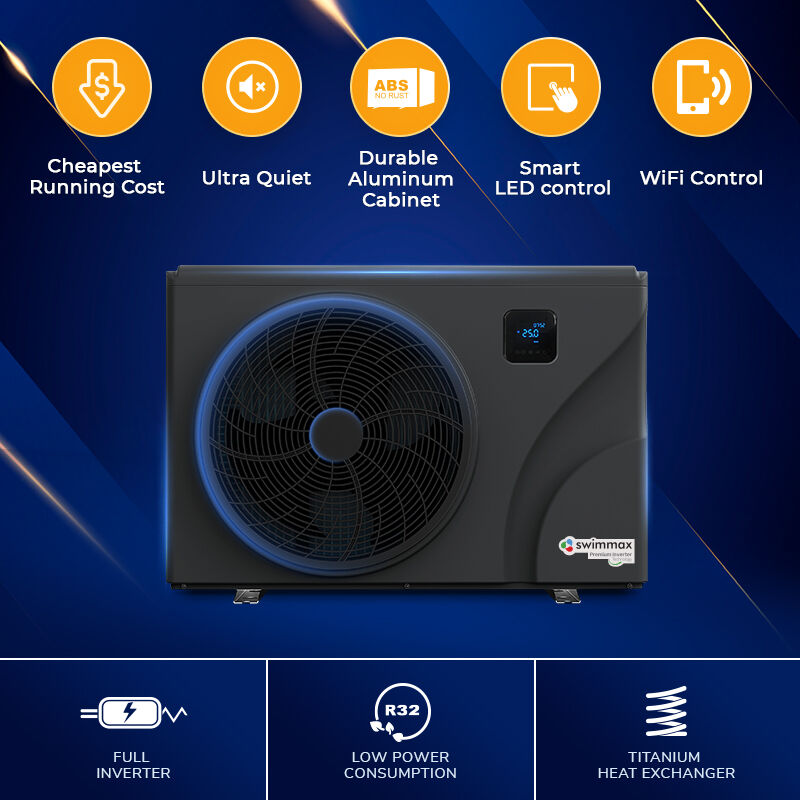

Key Features

Inverboost Technology
Up to 15-30% less power consumption
ABS No-Rust Exterior Case
DC Full Inverter

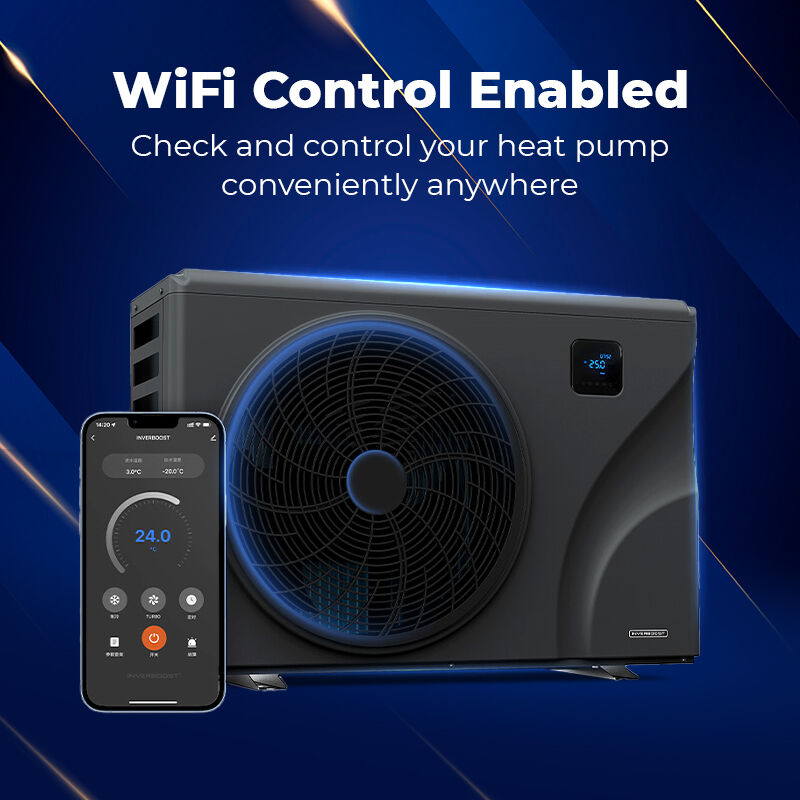

Wi-Fi Control

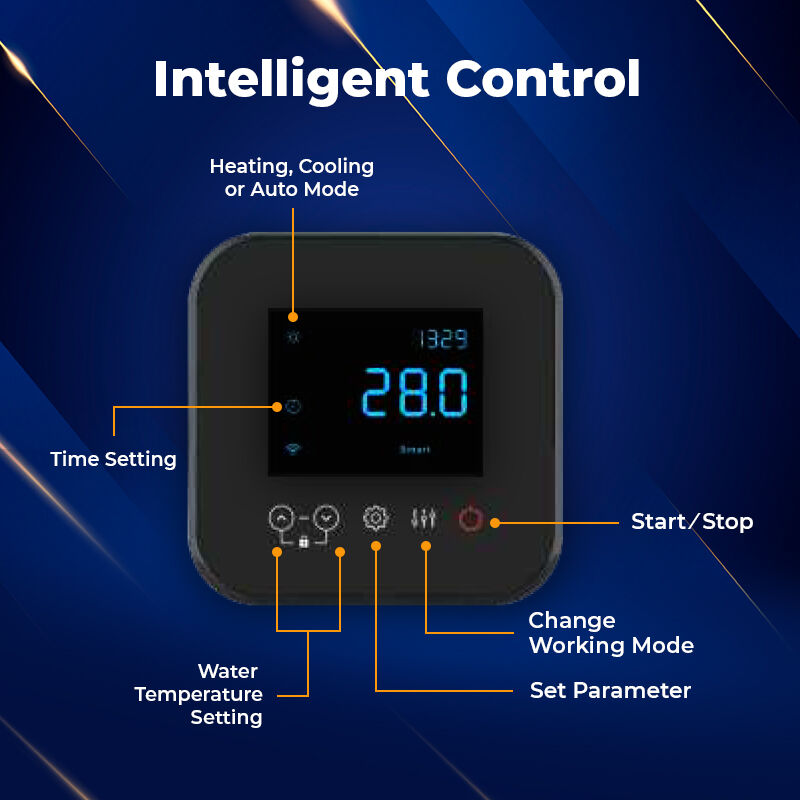

LCD Screen Control
Lower GWP
Titanium Heat Exchanger
Automatic Heating and Cooling
Quiet Operation

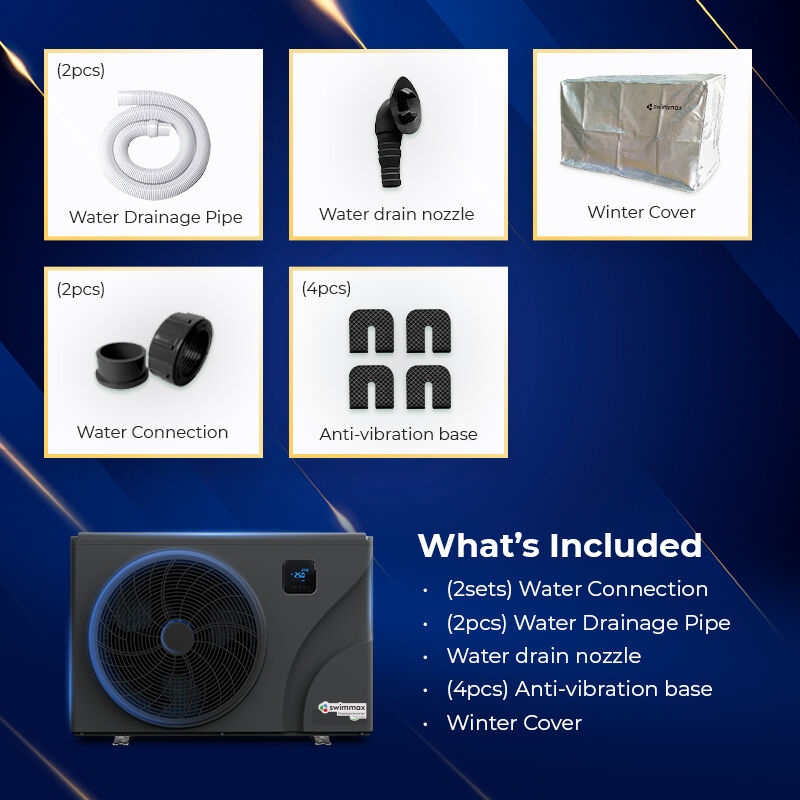

Product Inclusions

255P PBS Inverboost Heat Pump
(2x) Water drainage pipes
(2x) Water Drain Nozzle
(2x) Water Connection
(4x) Anti-vibration base
Winter cover

Heat Pump Installation

For correct installation, Diversion Valves must be fitted for optimal performance. Diversion valves regulate and balance water flow, aiding in the pump's smooth and efficient operation. You can read the complete Heat Pump Installation Guide and buy a set of diversion kits: 40mm or 50mm.

Diversion Setup

Diversion valves are mandatory to balance water flow
Failure to install valves correctly will lead to errors
Your pump will flow up to 20,000 L/HR or 3-4 times the required maximum rate
We are unable to help you troubleshoot error codes without a diversion setup
Set top valve to approximately 50% water flow
Bottom Valve most important. Set bottom valve to approximately 25/30% water flow (depending on the model)
Please refer to min/max flow chart for guidance

Read more about Diversion Installation Setup.

Model	Swimmax PBS 255P
Performance at Air 28°C. Water 28°C. Humidity 80%
Heating Capacity	24.5 - 5.9 kW
Power Consumption	4.08 - 0.37 kW
COP	16 - 6
Performance at Air 15°C. Water 26°C. Humidity 70%
Heating Capacity	14 - 3.9 kW
Power Consumption	3.11 - 0.54 kW
COP	7.2 - 4.5
General Info
Compressor Type	Inverter Compressor
Voltage / Power Supply	220~240V / 50Hz or 60Hz /1PH
Rated Current	18.1A
Minimum Fuse	27A
Max Pool Volume
Water Flow (m3/h)	8
Water Pressure Drop	20 Kpa
Heat Exchanger	Twist-titanium tube in PVC

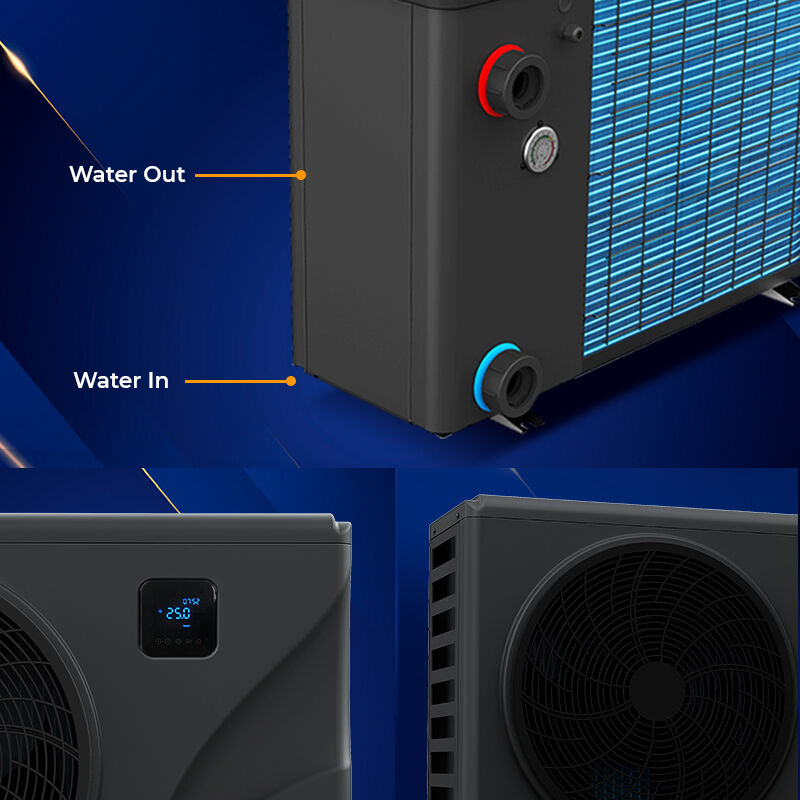

Water Connection	50mm
Fan Qty	1
Fan Speed	500-850 RPM
Power Input of fan motor	6-35 W
Noise at 10m	≤46 dB(A)
Noise at 1m	42-60 dB(A)
Refrigerant	Eco-friendly R32
Heating mode and Auto mode setting range	6-41℃
Cooling mode ℃ setting range	6-35 ℃
Dimension/Weight
Net weight	128 kg
Gross weight	146 kg

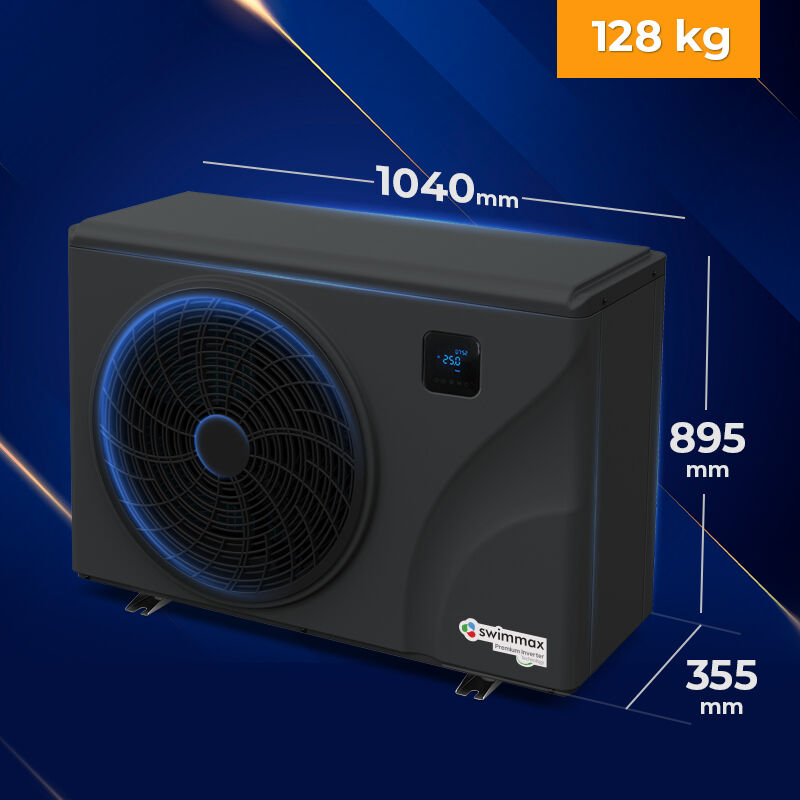

Net dimension (mm)	1040 x 355 x 895
Packing dimension (mm)	1095 x 405 x 1025
