Emaux Pool Cartridge Pool Filter with Element

Description

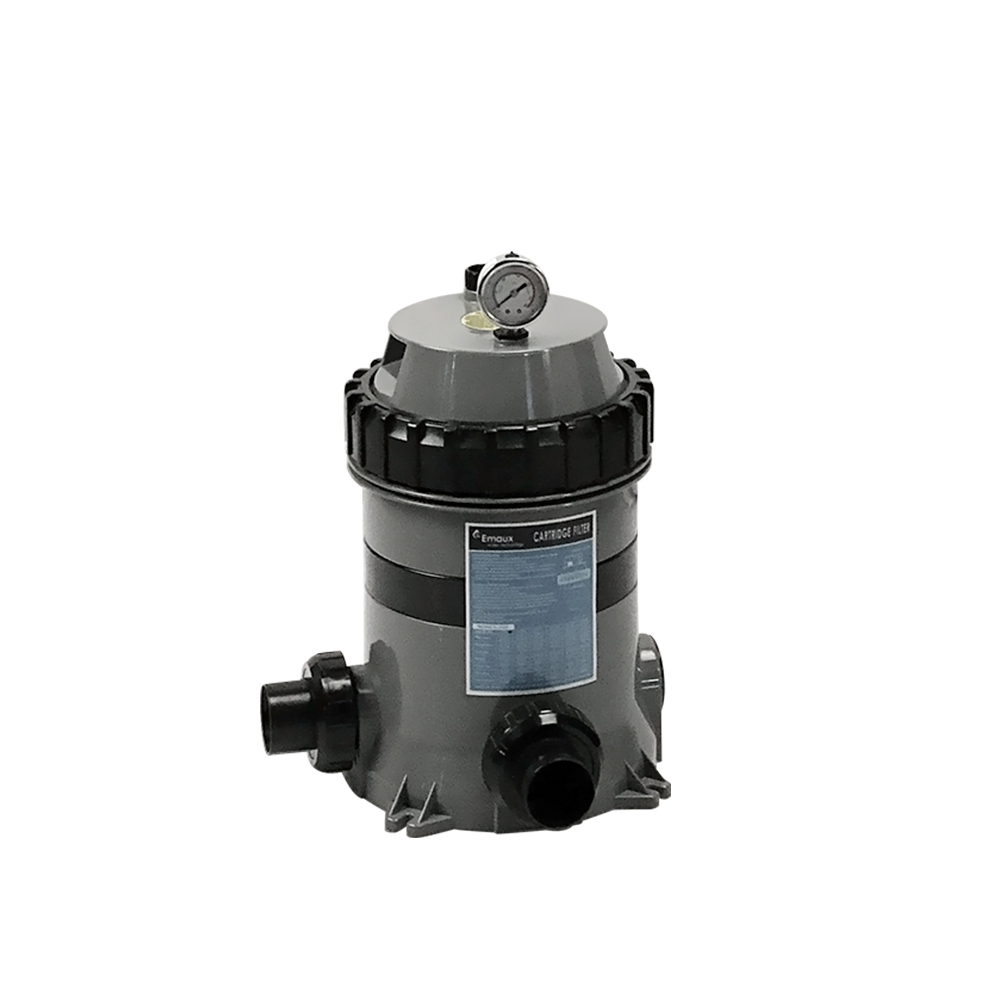

Emaux Swimming Pool Cartridge Filter

Comes with filter element

Cartridge Filters are intended with minimal installation steps. Simply connect the piping and the filters are ready to provide you with crystal clear water. The heavy duty ring-lock lid allows easy cleaning and the replacement of the cartridge element. Compact and light weight design is ideal for confined space setup.

Maximum Working Pressure: 250kPa /36psi /2.5bar
Maximum Water Temperature: 40°C (100°F)

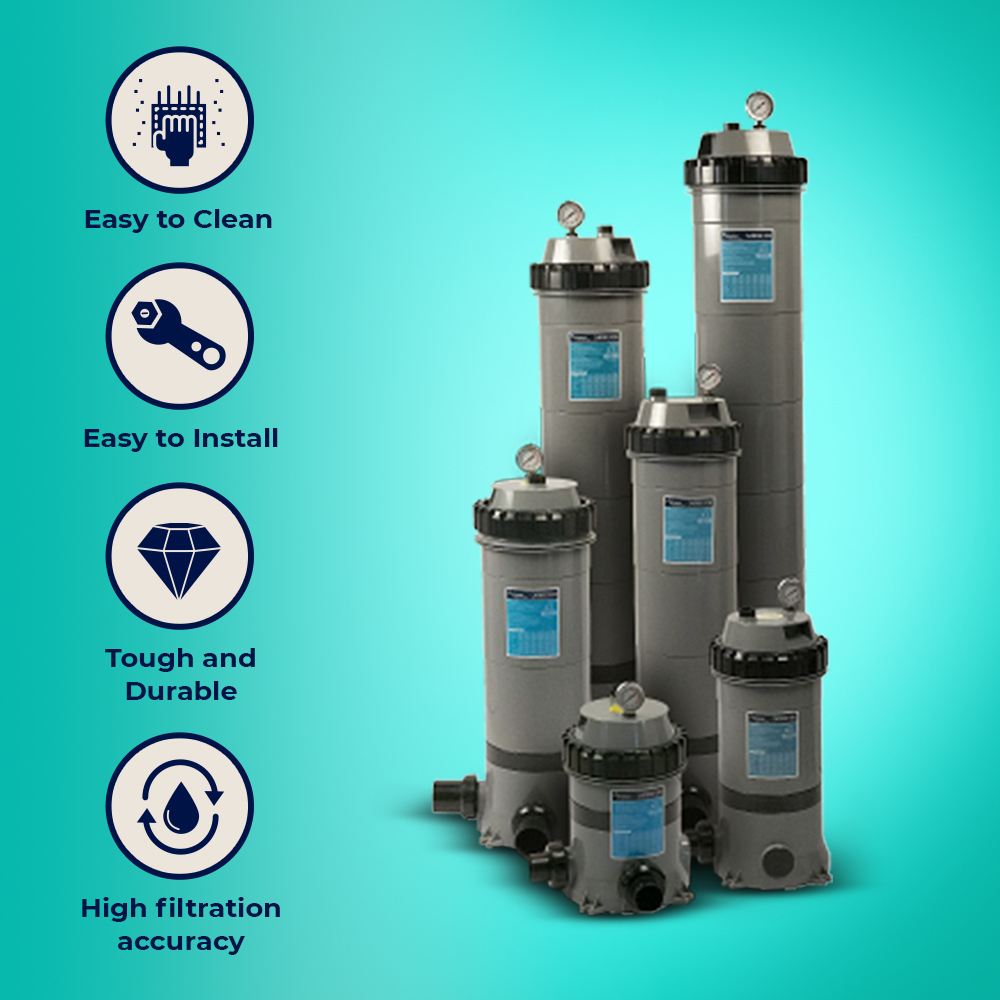

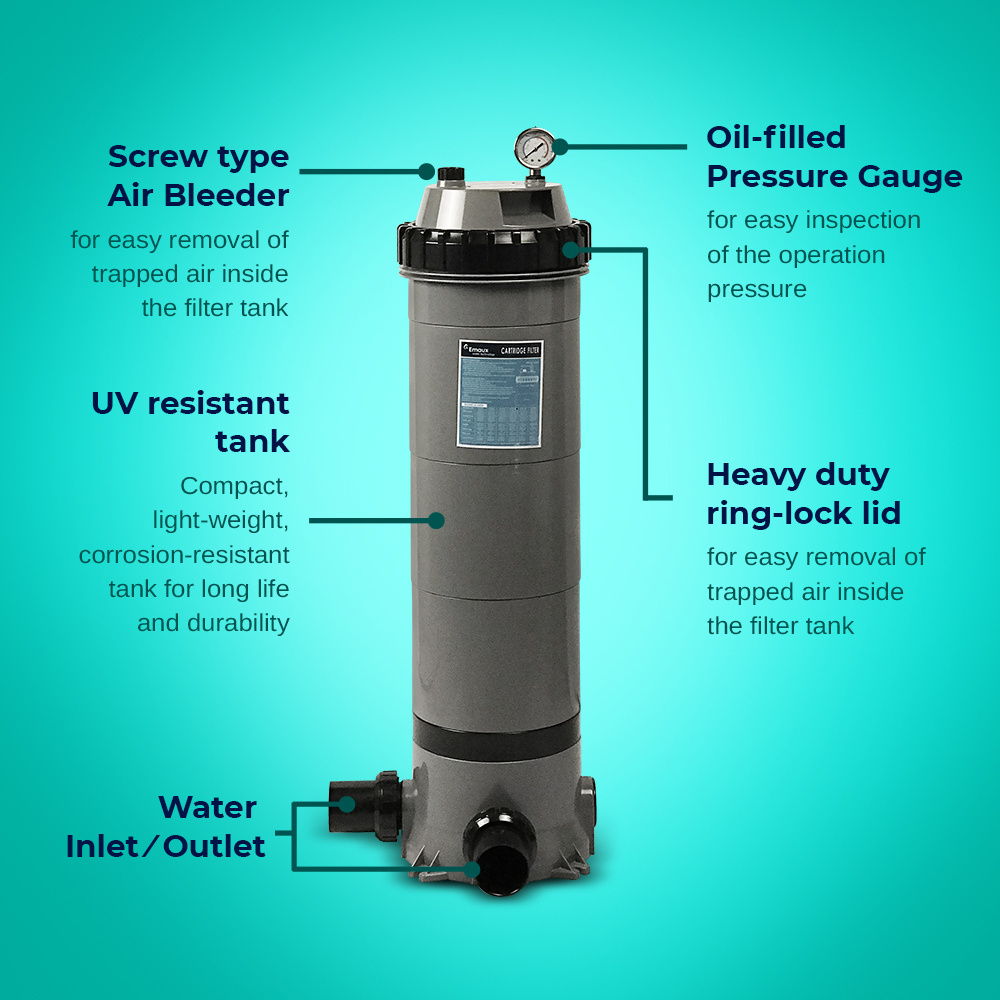

FEATURES

Compact and light weight
UV resistant tank
Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element
Screw type air bleeder for easy removal of trapped air inside the filter tank
High quality oil filled pressure gauge for easy inspection of the operation pressure
Application to domestic swimming pool & spa

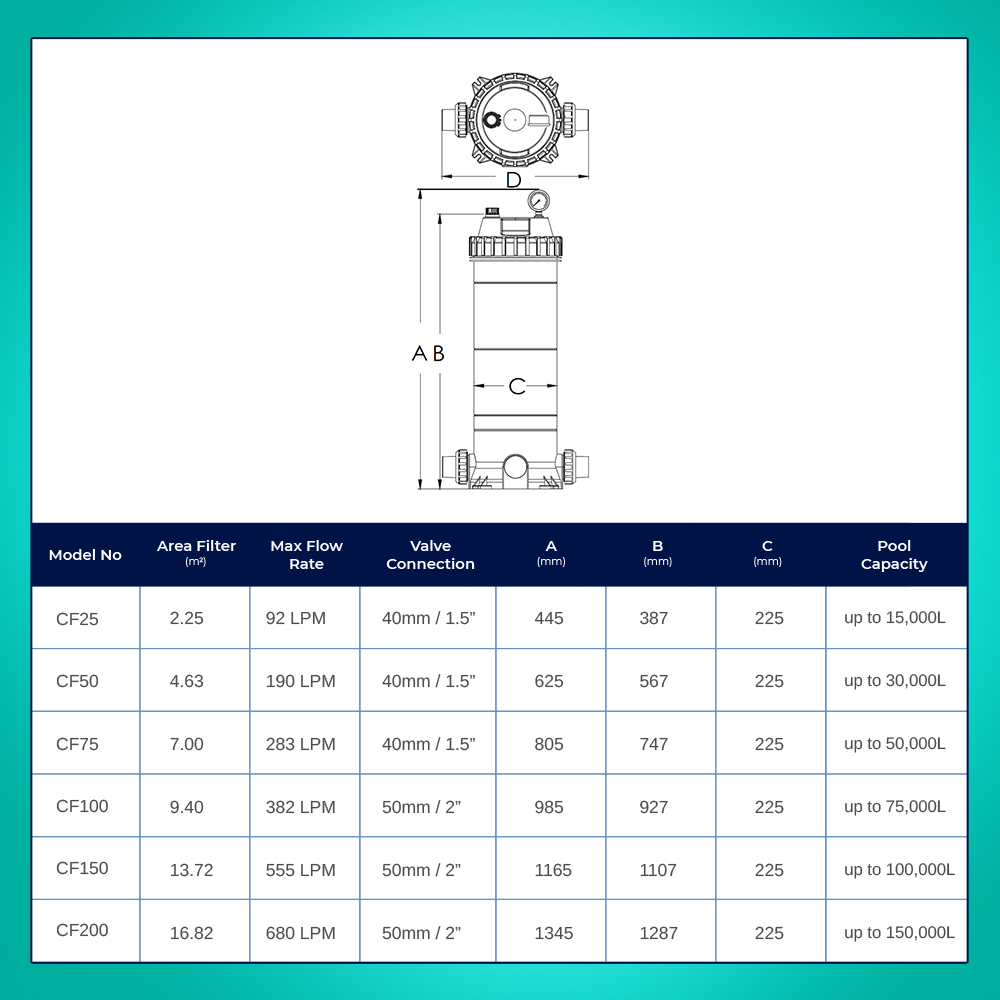

SPECIFICATIONS

Model	Pool Capacity	Filtration Area	Valve Connections	Max Flow Rate

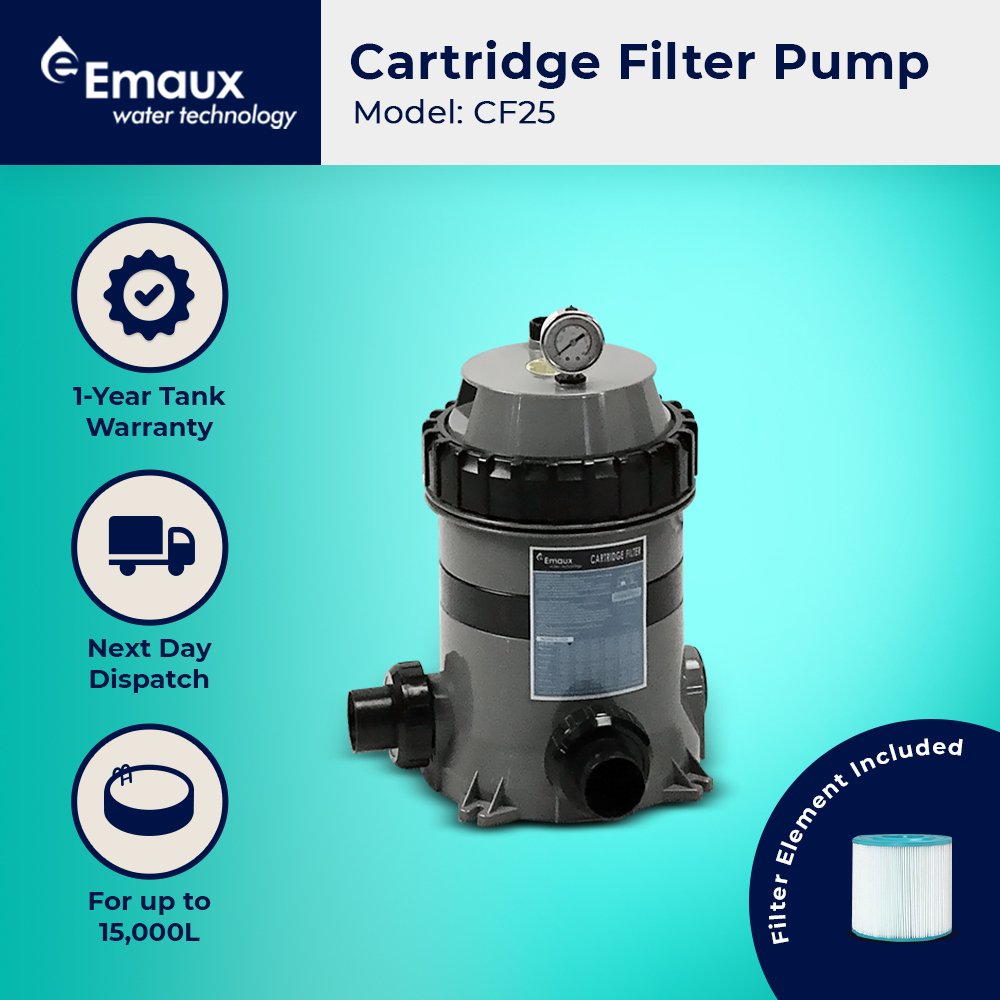

CF25	up to 15,000L	2.25 m²	1.5” / 50 mm	92 lpm or 5.5 m³/h
CF50	up to 30,000L	4.63 m²	1.5” / 50 mm	190 lpm or 11.4 m³/h
CF75	up to 50,000L	7 m²	1.5” / 50 mm	283 lpm or 17.0 m³/h
CF100	up to 75,000L	9.4 m²	2.0” / 63 mm	382 lpm or 22.9 m³/h
CF150	up to 100,000L	13.72 m²	2.0” / 63 mm	555 lpm or 33.4 m³/h
CF200	up to 150,000L	16.82 m²	2.0” / 63 mm	680 lpm or 40.9 m³/h

Emaux Cartirdge Filters Comparison

Emaux Cartridge filters come in various sizes and capacity to suit any of your pool requirements.

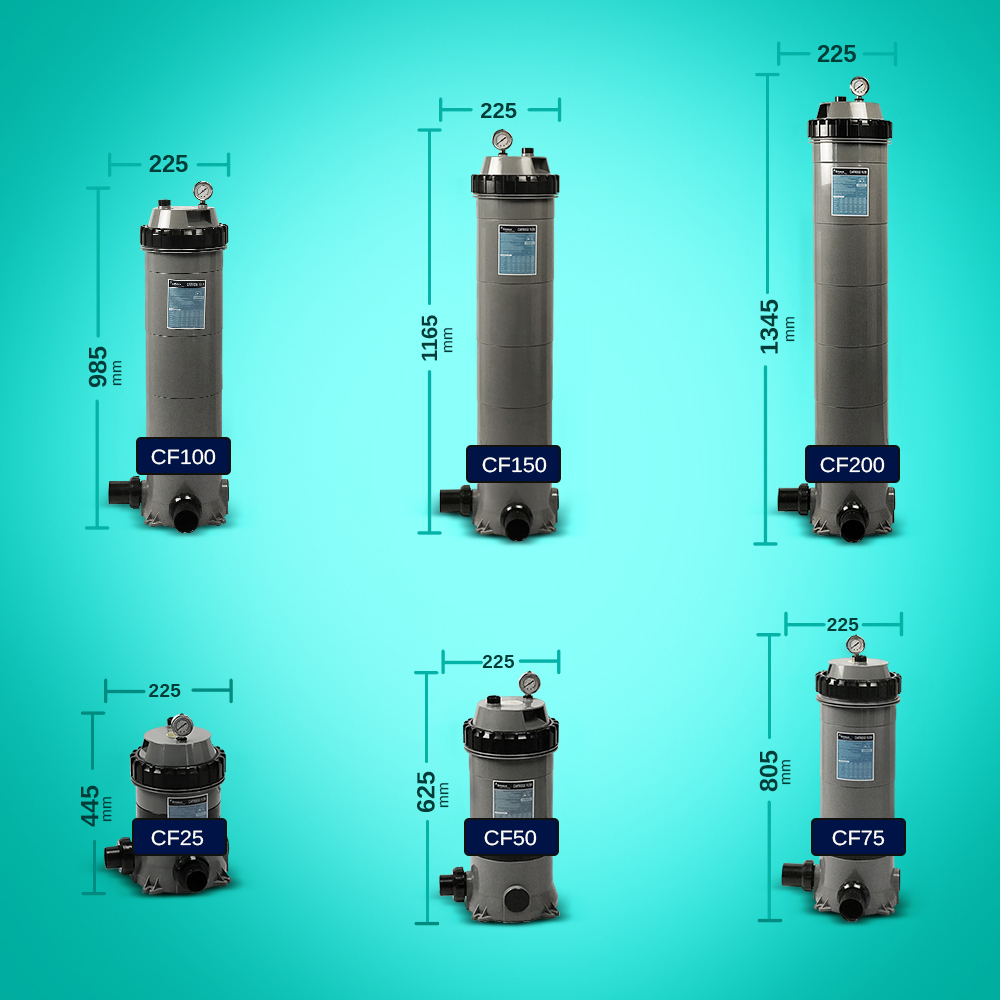

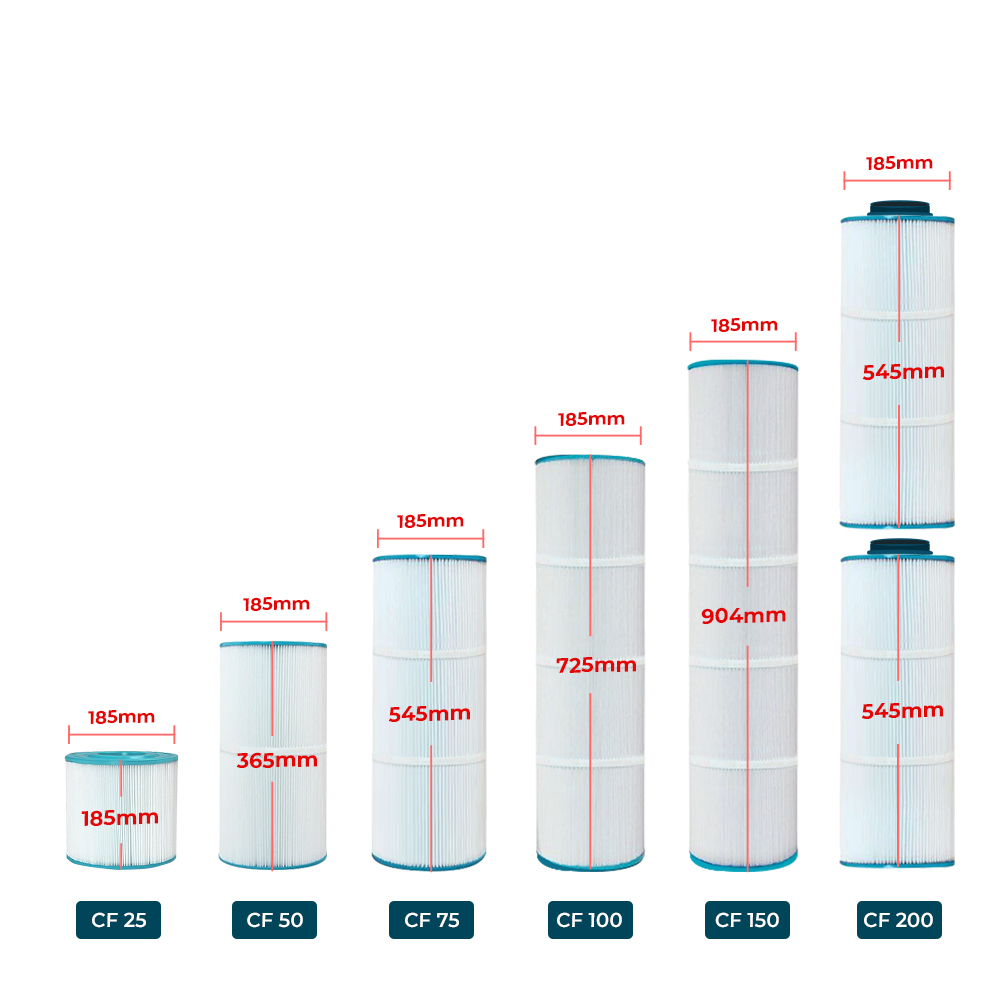

Emaux Cartridge Filter Sizes Guide

Guaranteed Clear Water Filtration

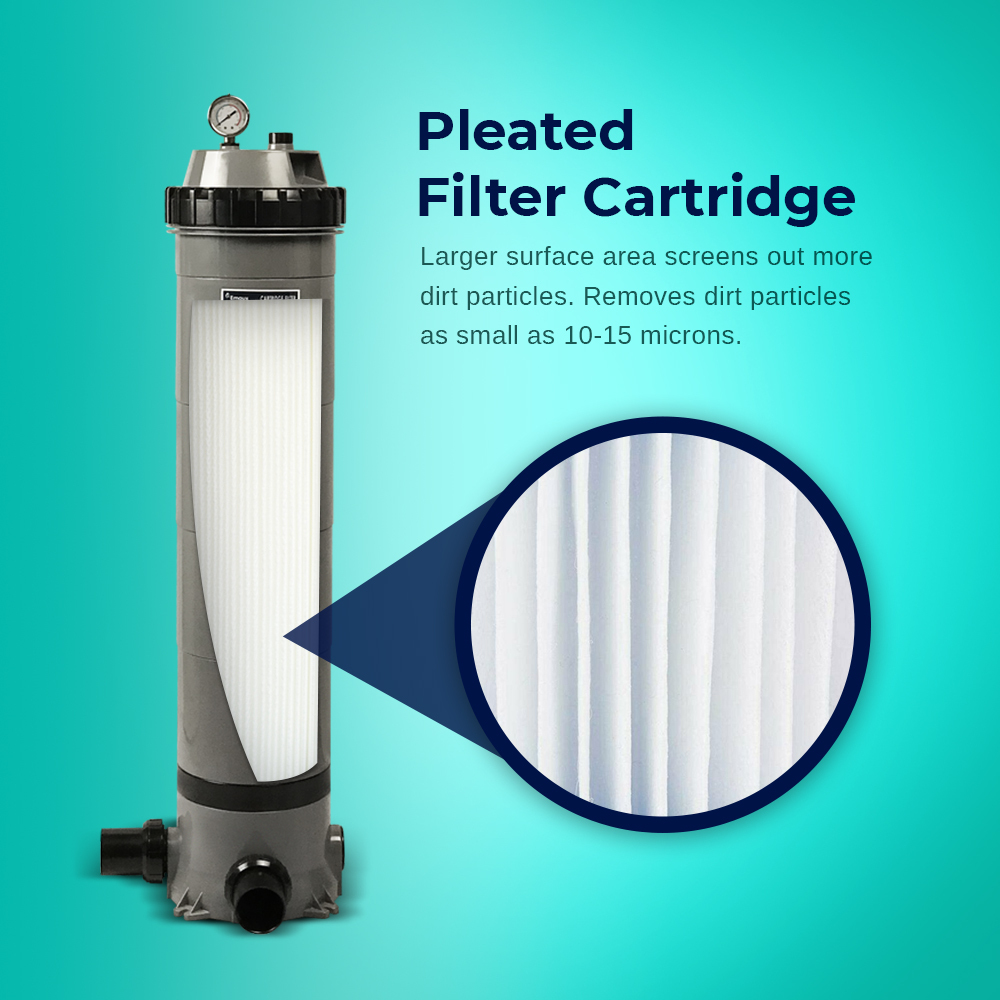

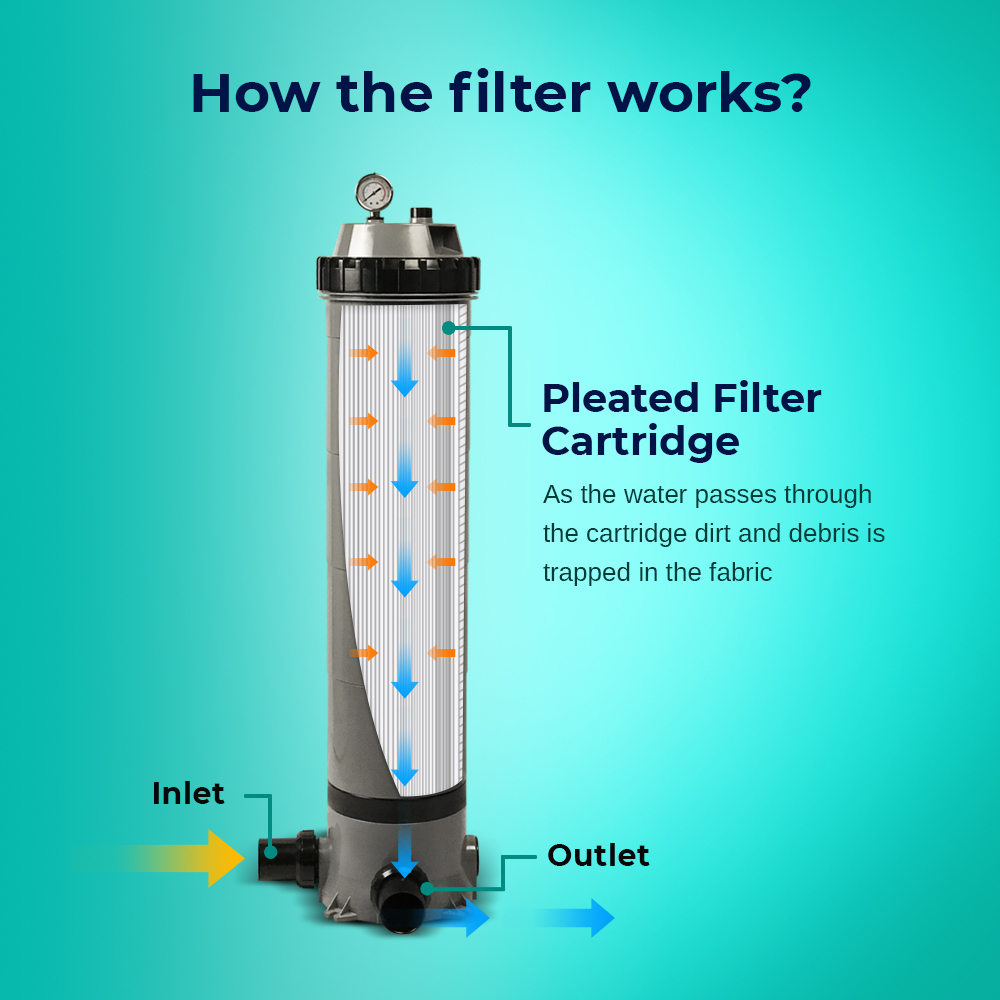

Cartridge filtration is an effective trouble-free proven method of filtration. Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool.

Need advice or a custom solution? Call Us!

We have a full range of Pool Heaters, Pool Pumps & Sand Filters.

Specifications

SPECIFICATIONS

Model	Pool Capacity	Filtration Area	Valve Connections	Max Flow Rate
CF25	up to 15,000L	2.25 m²	1.5” / 50 mm	92 lpm or 5.5 m³/h
CF50	up to 30,000L	4.63 m²	1.5” / 50 mm	190 lpm or 11.4 m³/h
CF75	up to 50,000L	7 m²	1.5” / 50 mm	283 lpm or 17.0 m³/h
CF100	up to 75,000L	9.4 m²	2.0” / 63 mm	382 lpm or 22.9 m³/h
CF150	up to 100,000L	13.72 m²	2.0” / 63 mm	555 lpm or 33.4 m³/h
CF200	up to 150,000L	16.82 m²	2.0” / 63 mm	680 lpm or 40.9 m³/h

SKU	535
Brand	Emaux
