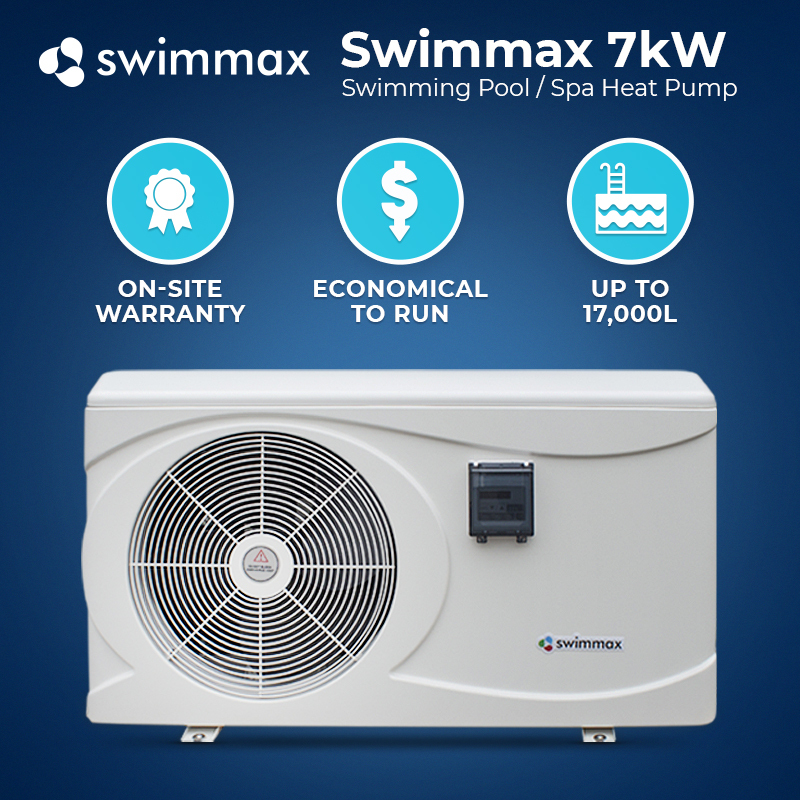

Swimmax Eco Heat Pumps showcase an ABS No-Rust Exterior Case. This specific unit is recommended for swimming pools and spas with a capacity of up to 17,000 liters, depending on the pool type, desired use, and prevailing weather in your location. Swimmax Eco Heat Pumps run quietly and economically 24/7, operating at only 50 decibels.

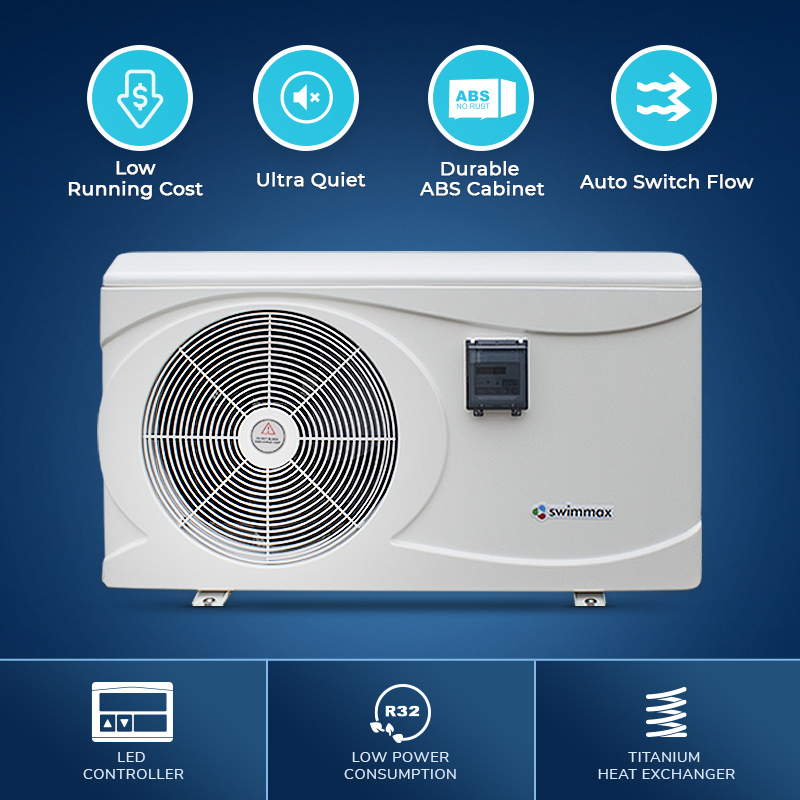

Key Features
-
ABS No-Rust Exterior Case
-
Up to 75% Less Energy Consumption
-
Automatic Heating and Cooling
-
Auto-Flow Switch
-
Eco-Friendly
-

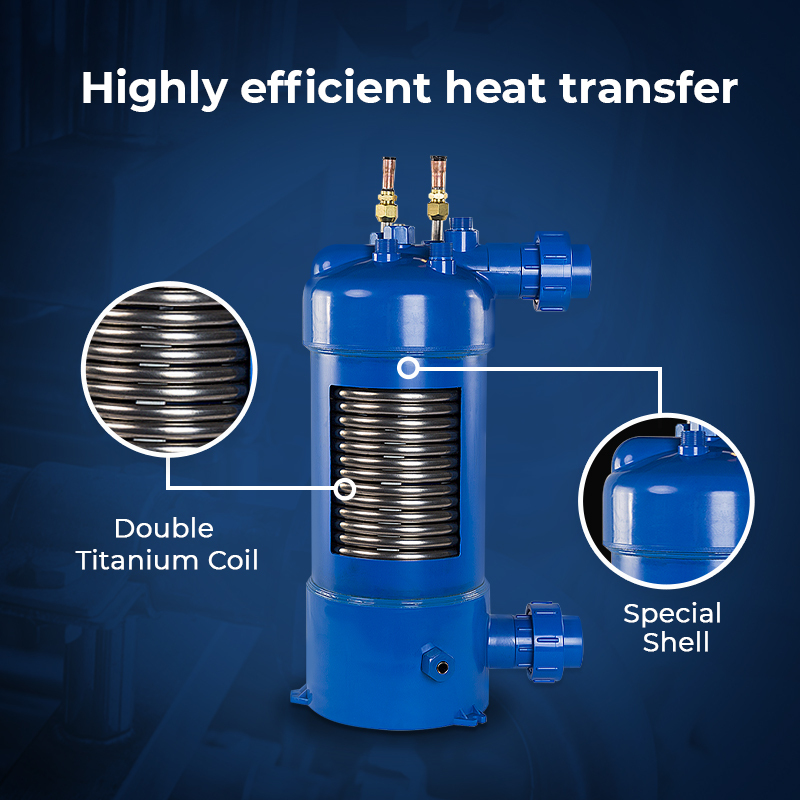

Spiral Titanium Heat Exchanger
-
Smart Defrosting
Product Inclusions
-

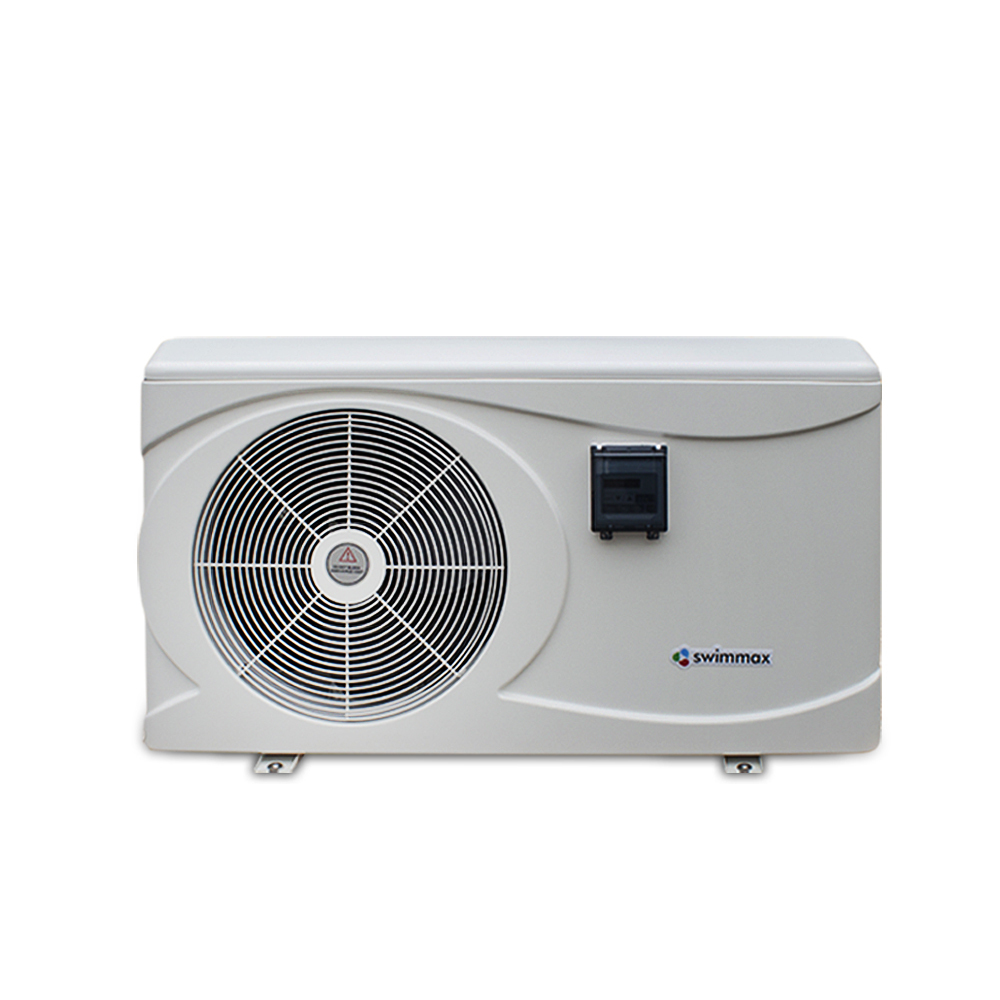

Swimmax 7kW Eco Heat Pump
-
2x Barrel unions
-

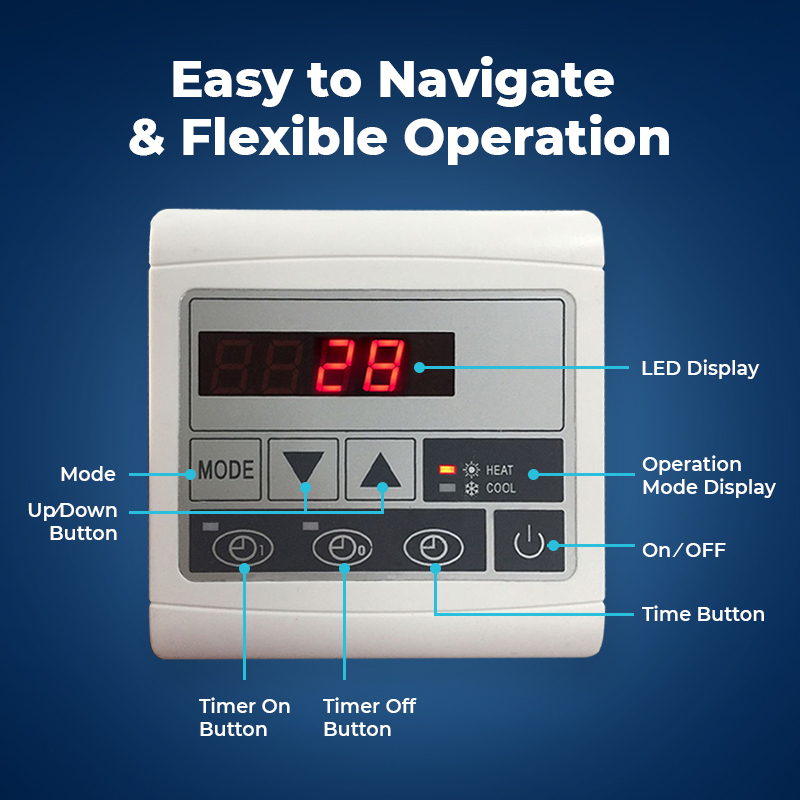

10m wire cable - controller
-
Australian-compliant power plug and cable
-
Instruction manual
-

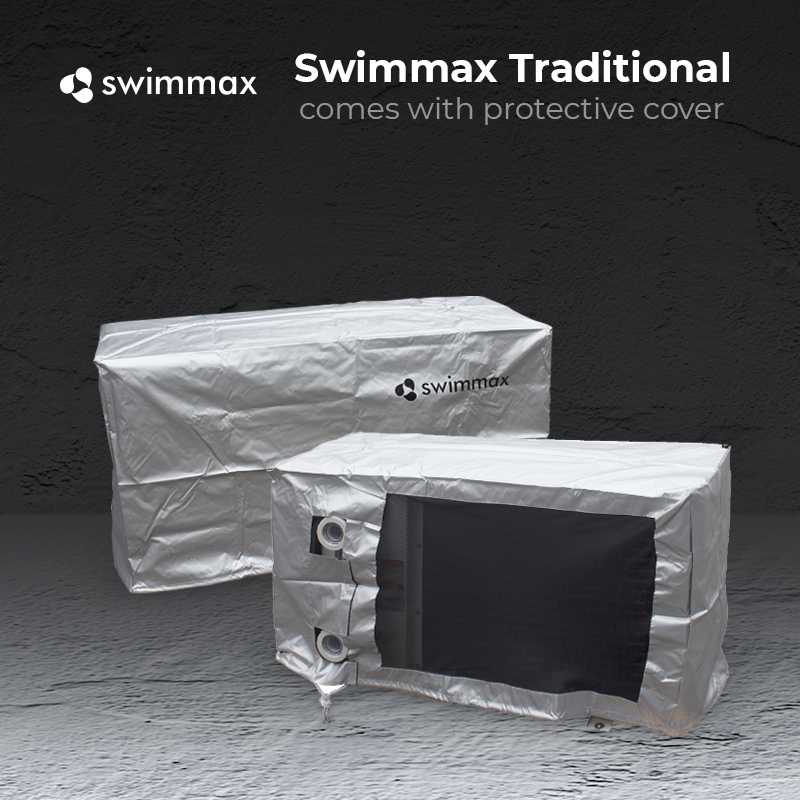

Heat pump cover
Heat Pump Installation
For correct installation, Diversion Valves must be fitted for optimal performance. Diversion valves regulate and balance water flow, aiding in the pump's smooth and efficient operation. You can read the complete
Heat Pump Installation Guide and buy a set of diversion kits:
40mm or
50mm.

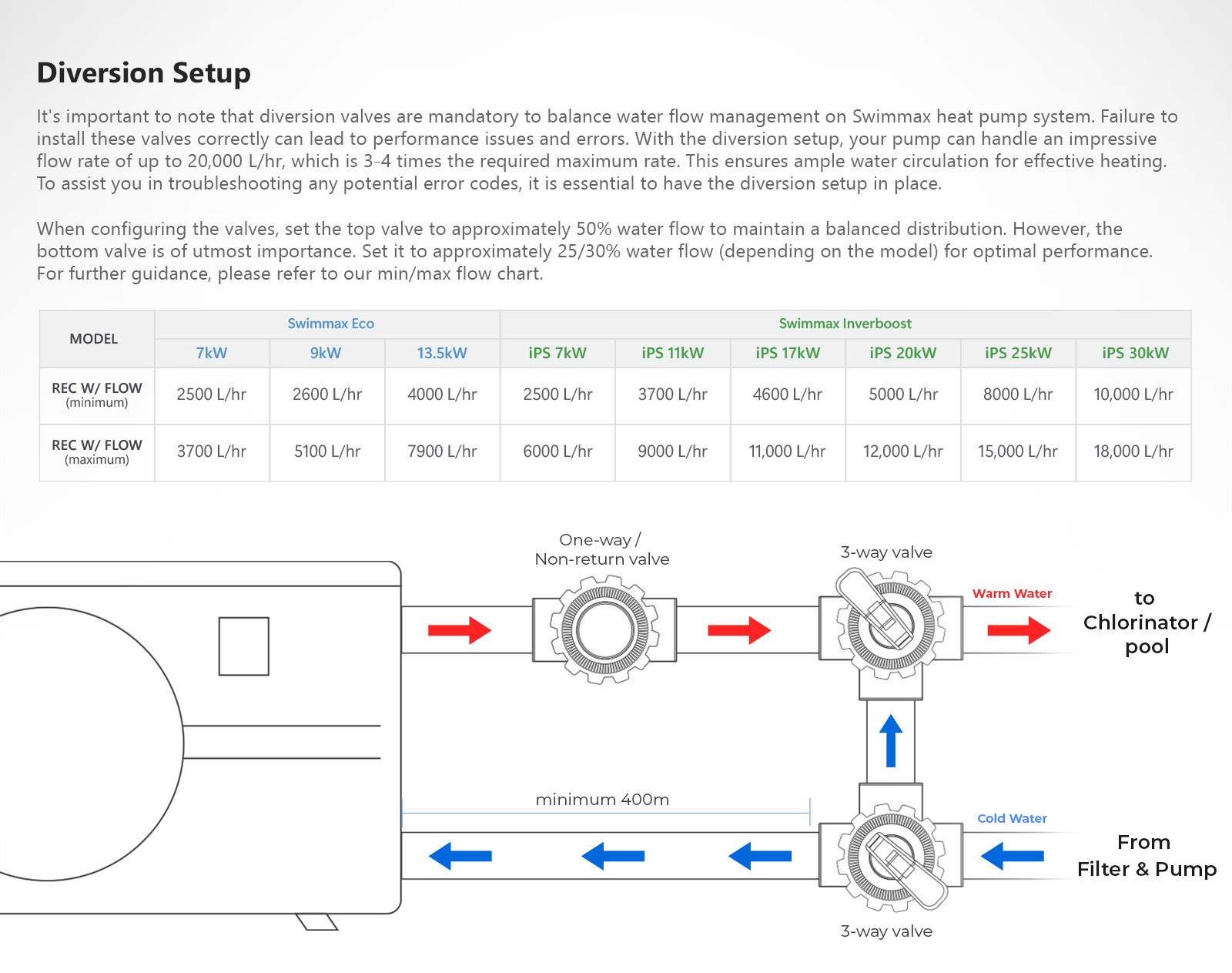

Diversion Setup
- Diversion valves are mandatory to balance water flow
- Failure to install valves correctly will lead to errors
- Your pump will flow up to 20,000 L/HR or 3-4 times the required maximum rate
- We are unable to help you troubleshoot error codes without a diversion setup
- Set top valve to approximately 50% water flow
- Bottom Valve most important. Set bottom valve to approximately 25/30% water flow (depending on the model)
- Please refer to min/max flow chart for guidance
Read more about Diversion Installation Setup.
| Model |
Swimmax 7 kW |
| Performance at Air 28°C. Water 28°C. Humidity 80% |
| Input Power/ Heating Capacity |
7.5 kW |
| Input Current/ Power consummation |
1.34 kW |
| COP |
5.6 |
| Performance at Air 24°C. Water 24°C. Humidity 70% |
| Input Power/ Heating Capacity |
7.35 kW |
| Input Current/ Power consummation |
1.33 kW |
| COP |
5.49 |
| Performance at Air 15°C. Water 26°C. Humidity 70% |
| Input Power/ Heating Capacity |
4.9 kW |
| Input Current/ Power consummation |
1.14 kW |
| COP |
4.3 |
| General Info |
| Compressor Type |
Rotary / R32 / GMCC (TOSHIBA) |
| Voltage / Power Supply |
220-240V/50Hz/1PH |
| Rate Current |
5.9A |
| Minimum Fuse |
10AMP – 3 pin Plug attached |
| Max Pool Volume |
17,000 L |
| Water Flow (m3/h) |
2.5-3.7 |
| Water Pressure |
12 kpa |
| Condenser |
Twist-titanium tube in PVC |

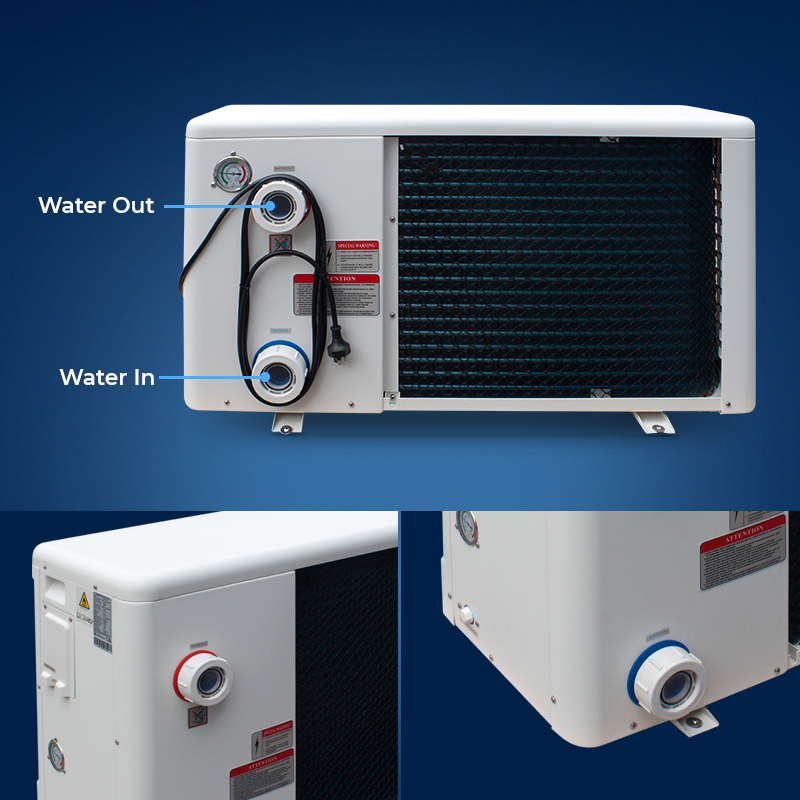

| Water Connection |
40mm/1.5"HP |
| Fan Qty |
1 |
| Fan Speed |
830-870 RPM |
| Power Input of fan motor |
80 W |

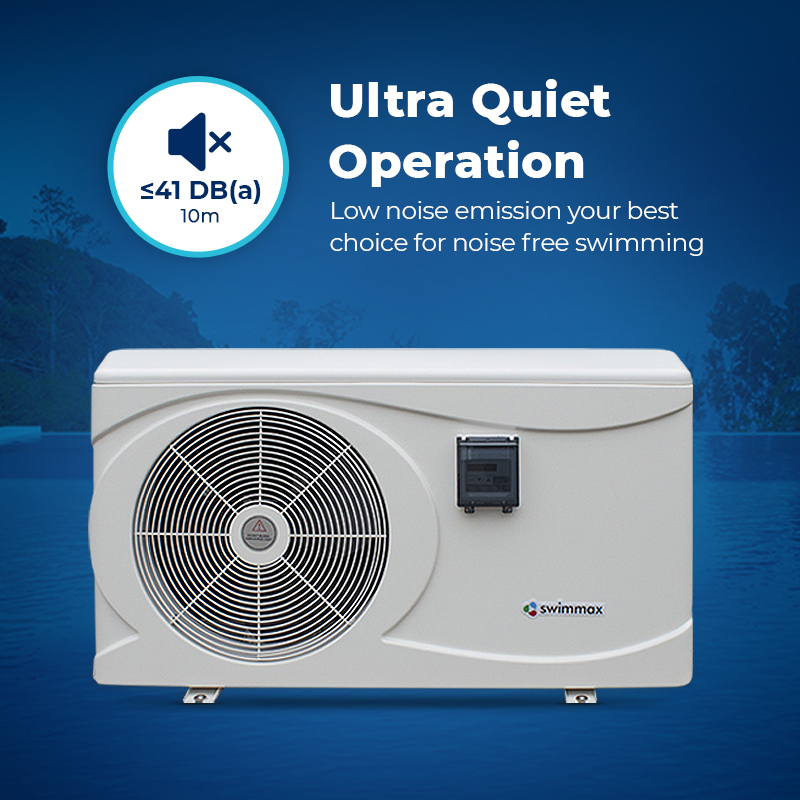

| Noise at 10m |
41 dB(A) |
| Noise at 1m |
50 dB(A) |
| Heating mode and Auto mode setting range |
15-40℃ |
| Cooling mode ℃ setting range |
6-35 ℃ |
| Dimension/Weight |
| Net weight |
45kg |
| Gross weight |
52kg |

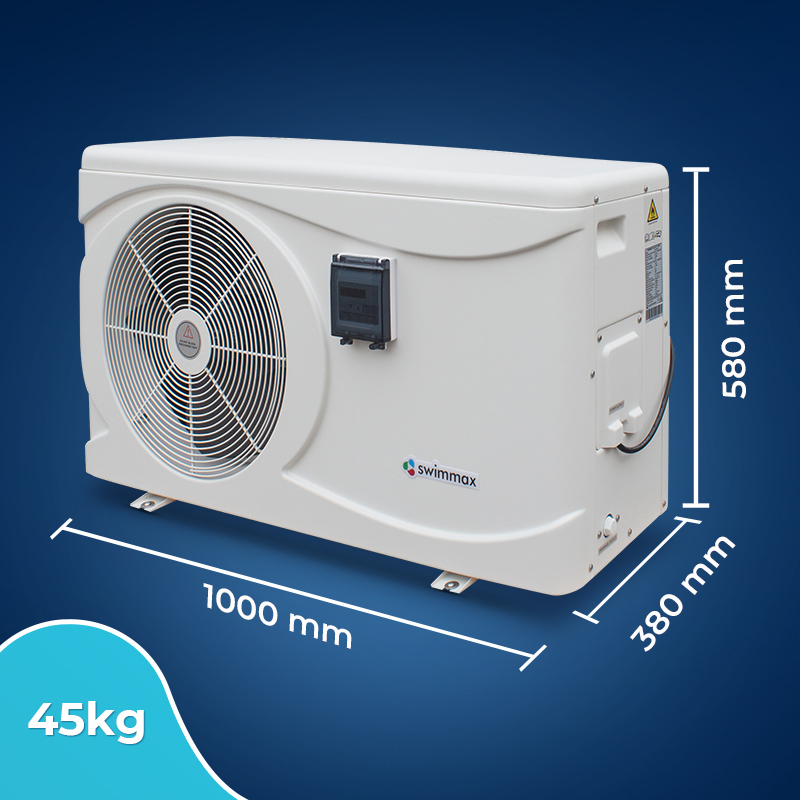

| Net dimension (mm) |
1000 x 380 x 580 |
| Packing dimension (mm) |
1072 x 420 x 590 |
