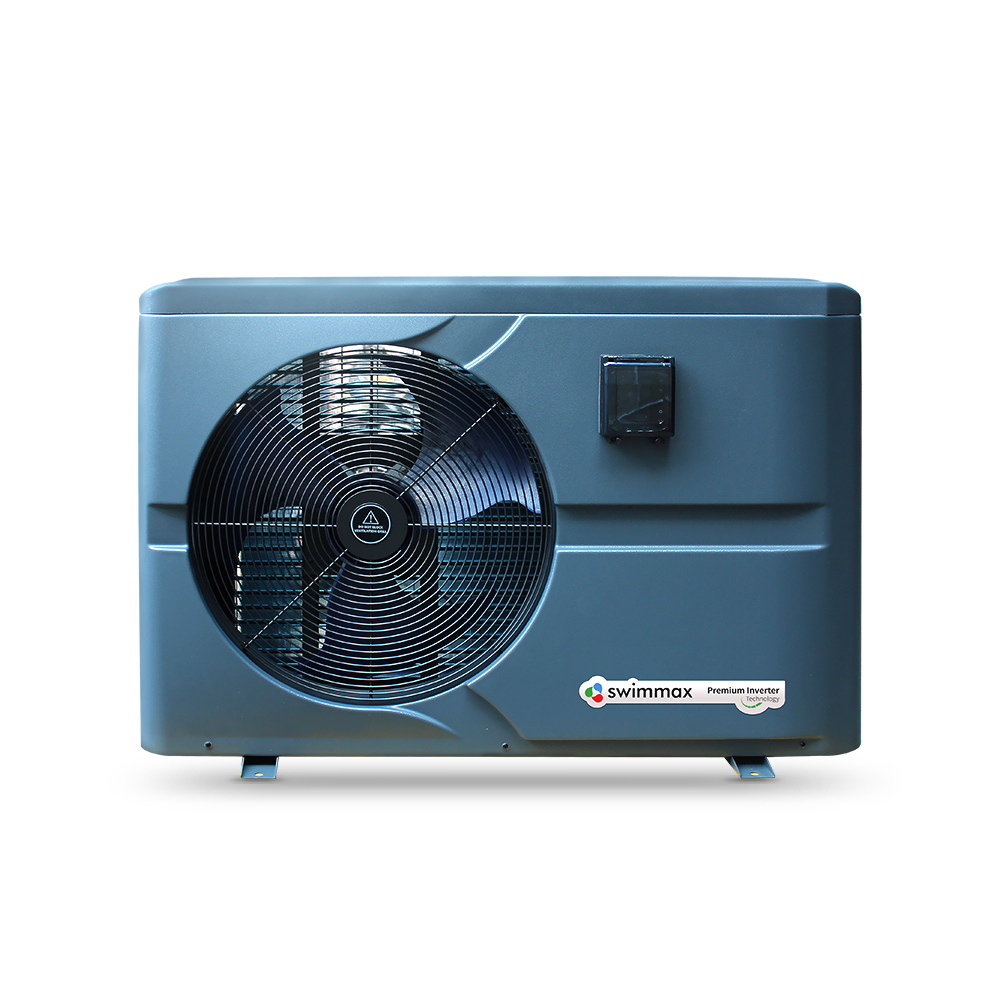

Swimmax Inverboost Heat Pumps by Premiere House have everything you’re looking for – or should be looking for – in a swimming pool and spa heat pump that pays for itself. Our powerful Inverboost technology gives competitors a run for their money – thanks to its robust, innovative, and reliable functionality.
Ideal for residential and public swimming pools and spas, our heat pumps showcase an ABS No-Rust Exterior Case that is tough and sleek. This premium inverter unit is recommended for pools and spas with up to 110,000 liters capacity. It also returns at least 25 kW in heat output for only 3.98 kW of electricity input. Swimmax Inverboost Heat Pumps can run silently and economically 24/7 in the cold, quietly operating at only 42 decibels.

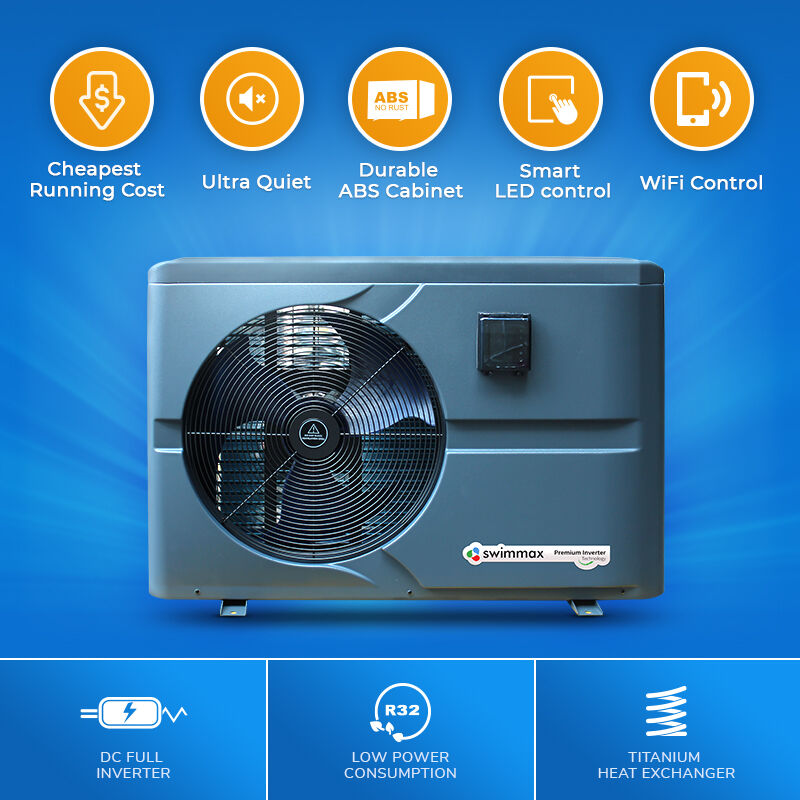

Key Features
-
Inverboost Technology
-
Up to 15-30% less power consumption
-
ABS No-Rust Exterior Case
-
DC Full Inverter
-
Wi-Fi Control
-

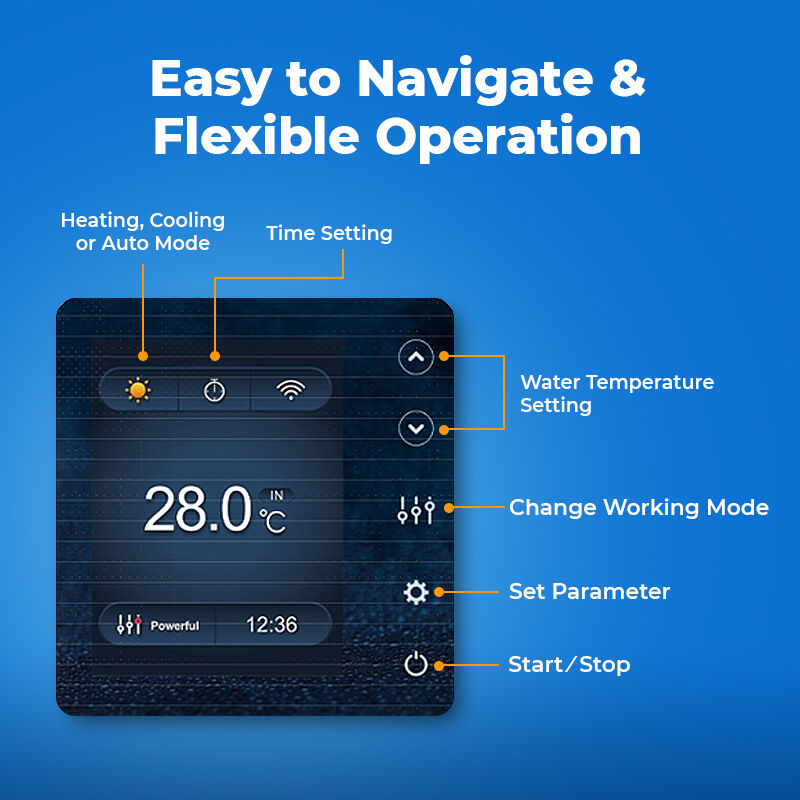

LCD Screen Control
-
Lower GWP
-
Titanium Heat Exchanger
-
Automatic Heating and Cooling
-
Quiet Operation

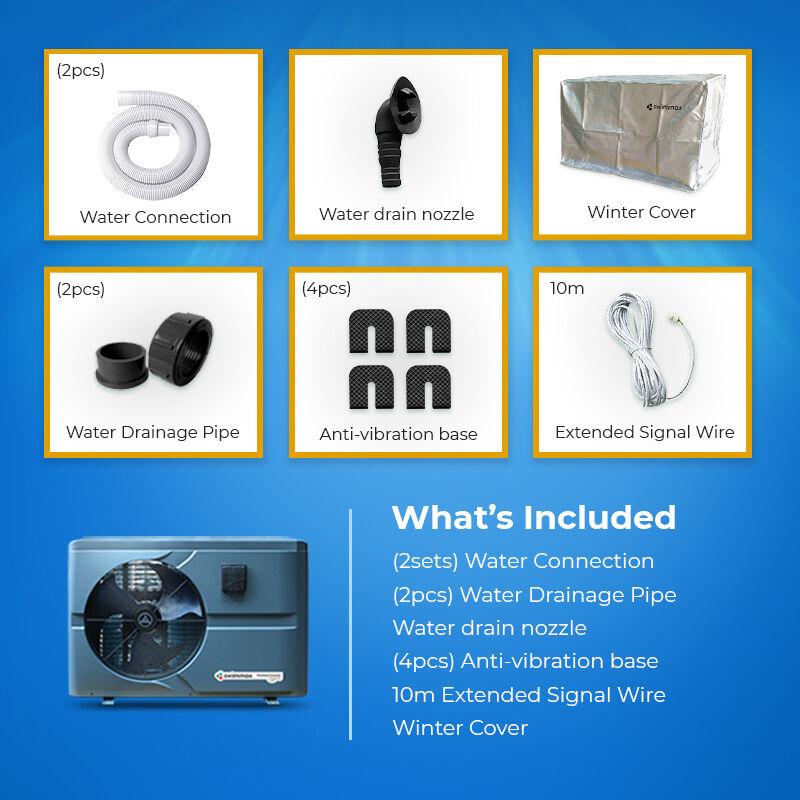

Product Inclusions
-
25iPS Inverboost Heat Pump
-
(2x) Barrel unions
-
10m wire cable - controller
-
(2x) Water drainage pipes
-
(2x) Draining plugs
-
(4x) Anti-vibration feet
-
Winter cover
Heat Pump Installation
For correct installation, Diversion Valves must be fitted for optimal performance. Diversion valves regulate and balance water flow, aiding in the pump's smooth and efficient operation. You can read the complete
Heat Pump Installation Guide and buy a set of diversion kits:
40mm or
50mm.

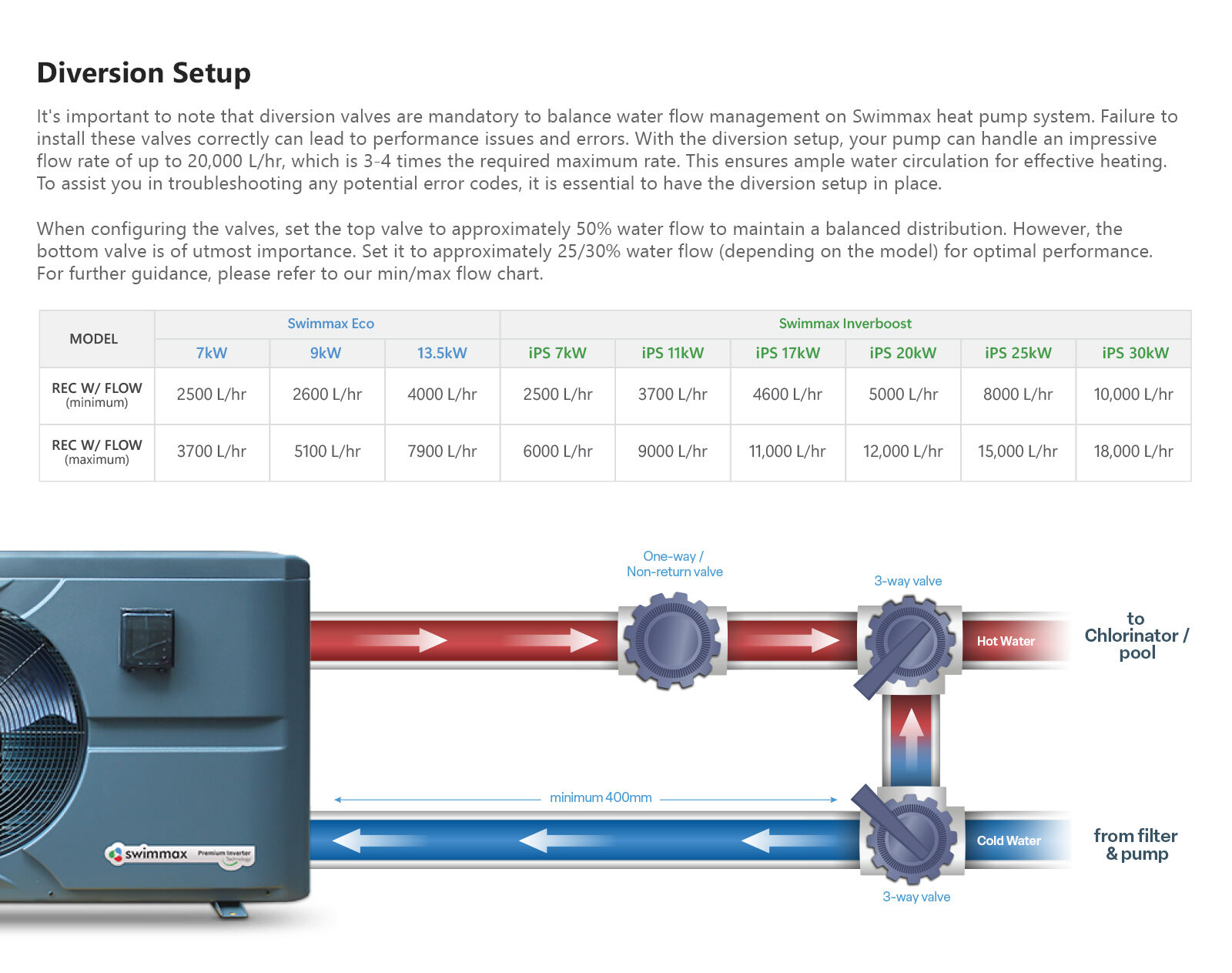

Diversion Setup
- Diversion valves are mandatory to balance water flow
- Failure to install valves correctly will lead to errors
- Your pump will flow up to 20,000 L/HR or 3-4 times the required maximum rate
- We are unable to help you troubleshoot error codes without a diversion setup
- Set top valve to approximately 50% water flow
- Bottom Valve most important. Set bottom valve to approximately 25/30% water flow (depending on the model)
- Please refer to min/max flow chart for guidance
Read more about Diversion Installation Setup.
| Model |
Swimmax 25iPS |
| Performance at Air 28°C. Water 28°C. Humidity 80% |
| Input Power/ Heating Capacity |
24-5.9 kW |
| Input Current/ Power consummation |
4-0.37 kW |
| COP |
16-6 |
| Performance at Air 24°C. Water 26°C. Humidity 70% |
| Input Power/ Heating Capacity |
23.8-5.8 kW |
| Input Current/ Power consummation |
3.98-0.37 kW |
| COP |
15.7-5.8 |
| Performance at Air 15°C. Water 26°C. Humidity 70% |
| Input Power/ Heating Capacity |
17.2-4.5 kW |
| Input Current/ Power consummation |
3.74-0.63 kW |
| COP |
7.2-4.6 |
| General Info |
| Compressor Type |
Inverter compressor (GMCC Inverter) |
| Voltage / Power Supply |
220~240V / 50Hz or 60Hz /1PH |
| Rate Current |
17.7 A |
| Minimum Fuse |
25Amp – Hard Wired |
| Max Pool Volume |
110,000 L |
| Water Flow (m3/h) |
8 |
| Water Pressure |
20 Kpa |

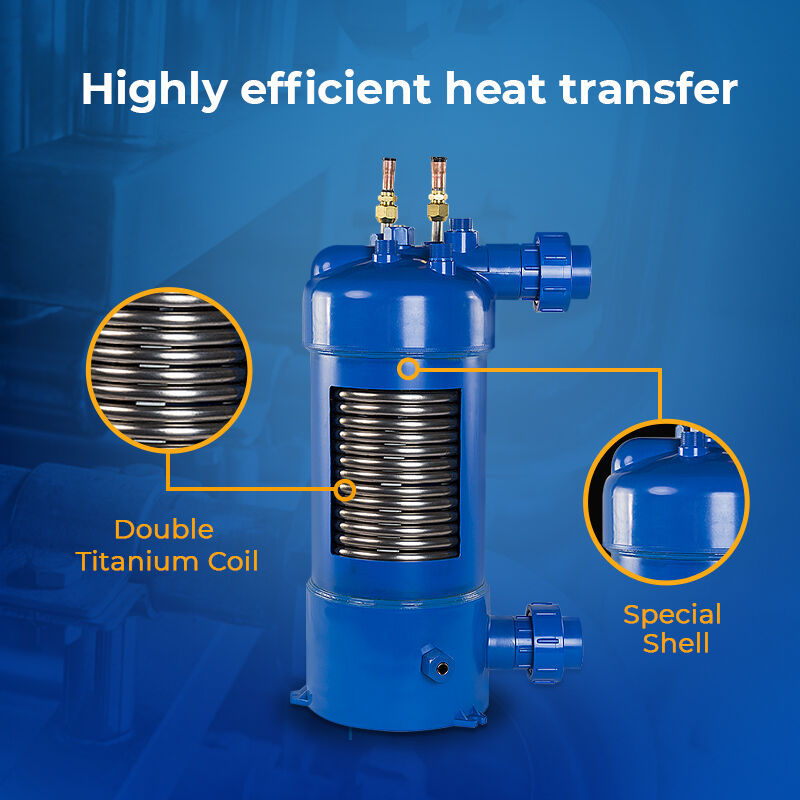

| Heat Exchanger |
Twist-titanium tube in PVC |

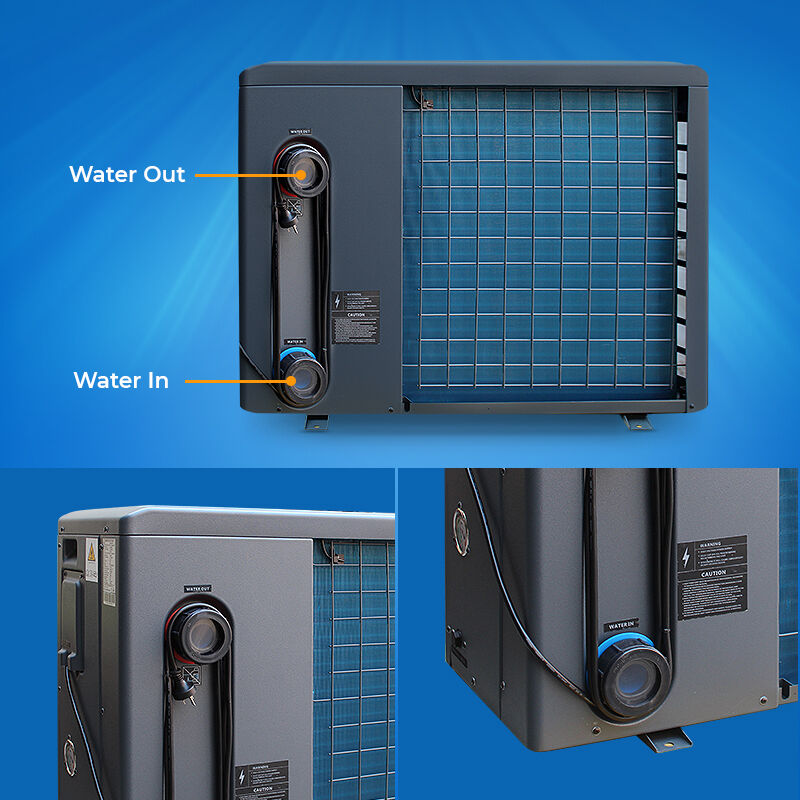

| Water Connection |
40mm/1.5"HP |
| Fan Qty |
1 |
| Fan Speed |
450-650 RPM |
| Power Input of fan motor |
35-130 W |
| Noise at 10m |
≤46 dB(A) |
| Noise at 1m |
42-58 |
| Refrigerant |
Eco-friendly R32 |
| Heating mode and Auto mode setting range |
6-41℃ |
| Cooling mode ℃ setting range |
6-35 ℃ |
| Dimension/Weight |
| Net weight |
128 kg |
| Gross weight |
146 kg |

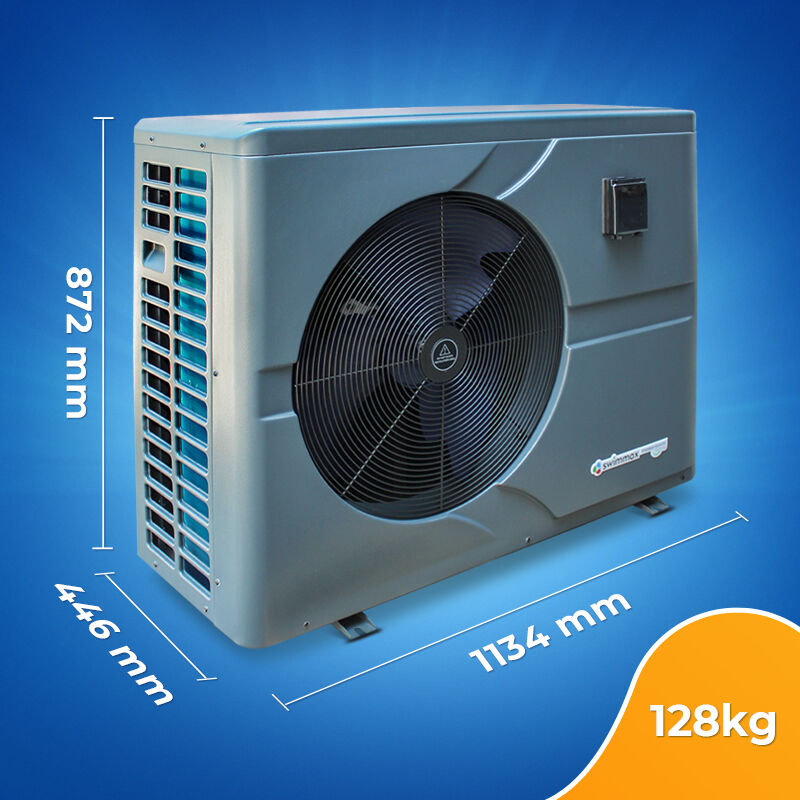

| Net dimension (mm) |
1134 x 446 x 872 |
| Packing dimension (mm) |
1186 x 495 x 1011 |
